[en] Edit elements

[en] This page provides guidance on working with specific elements in components.

[en] General formatting

[en]  There are two main ways to work with formatting:

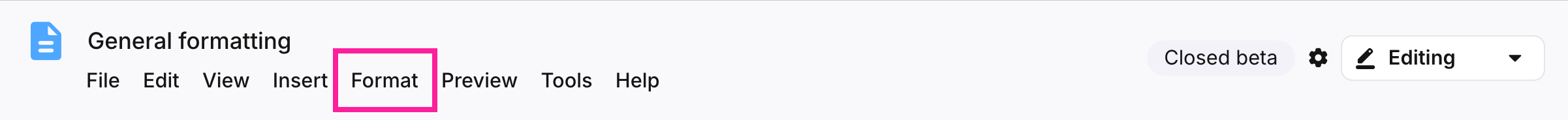

  • [en] the Format menu in the Menubar.


  • [en] the Toolbar.


    Anmerkung

    [en] Note that the Toolbar also contains other options, such as inserting sections, saving, and spellcheck.

[en] Both these methods work in the same way.

  1. [en] Select the text you want to format.

    Anmerkung

    [en] You can also place the cursor anywhere inside an element to produce an empty (formatted) element.

  2. [en] Choose your formatting option from either the Format menu or one of the icons in the Toolbar.

[en] For an overview of the various icons and keyboard shortcuts used for formatting and other functions, please refer to the [en] Icons and keyboard shortcuts page.

[en] Tables

[en] While it is still possible to adjust tables and cells by setting attributes on individual table elements, the easiest and fastest way to work with tables is to use the Table toolbar.

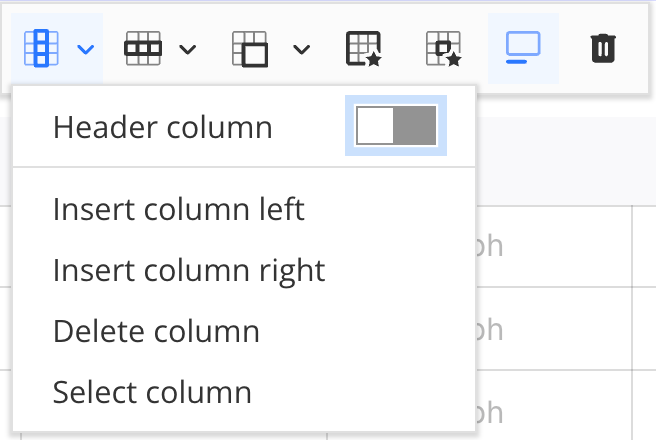

[en] Columns


  1. [en] Place your cursor in any cell in the column you want to affect.

  2. [en] From the Table toolbar select the Column icon (1).

  3. [en] In the dropdown you can choose from the following options:

    • [en] Header column (toggles header column on and off)

    • [en] Insert column left

    • [en] Insert column right

    • [en] Delete column

    • [en] Select column

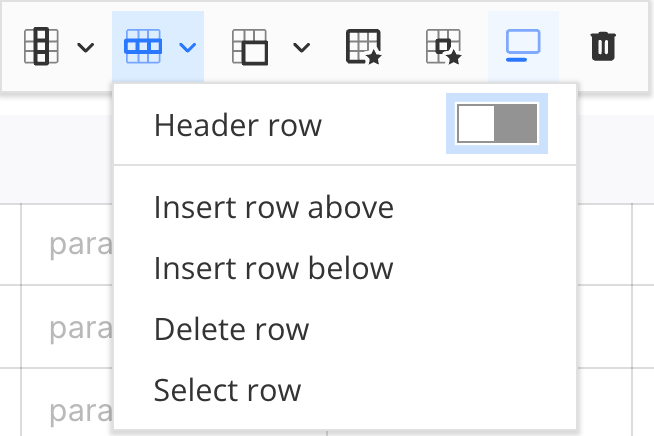

[en] Rows


  1. [en] Place your cursor in any cell in the row you want to affect.

  2. [en] From the Table toolbar select the Row icon (2).

  3. [en] In the dropdown you can choose from the following options:

    • [en] Header row (toggles header row on and off)

    • [en] Insert row above

    • [en] Insert column below

    • [en] Delete row

    • [en] Select row

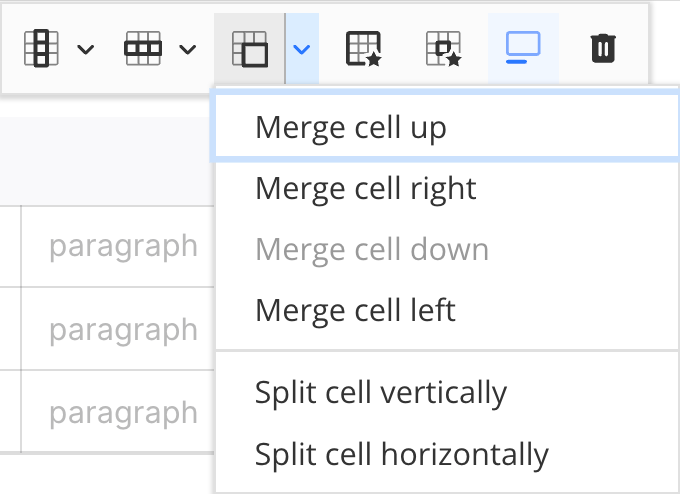

[en] Merge and split cells


  1. [en] Place your cursor in the cell you want to affect.

  2. [en] From the Table toolbar select the Row icon (3).

  3. [en] In the dropdown you can choose from the following options:

    Anmerkung

    [en] Depending on your cursor placement, one or more options may not be available for that particular cell.

    • [en] Merge cell up

    • [en] Merge cell right

    • [en] Merge cell down

    • [en] Merge cell left

    • [en] Split cell vertically

    • [en] Split cell horizontally

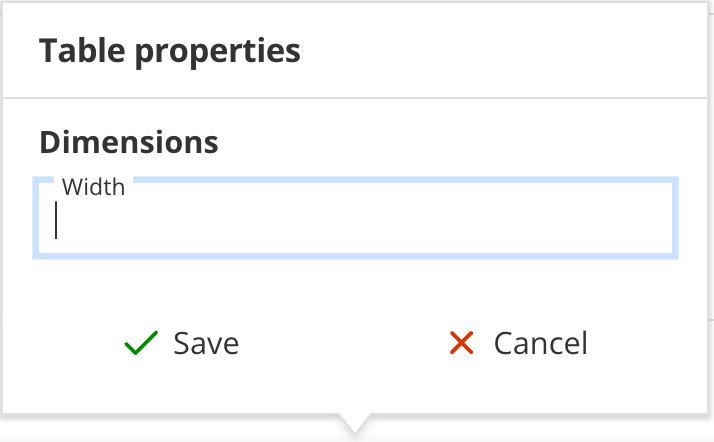

[en] Table properties

[en] In the table properties you can set the width of the table.


  1. [en] Place your cursor anywhere inside your table.

  2. [en] From the Table toolbar select the Table properties icon (4).

  3. [en] Set the table width in the Width field.

  4. Anmerkung

    [en] Widths can be set in percentages (%), pixels (px), centimeters (cm) and millimeters (mm).

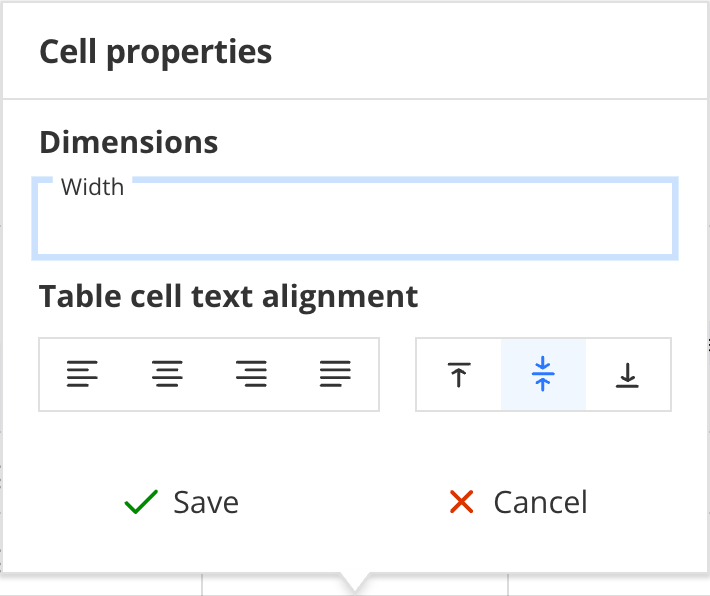

[en] Cell properties

[en] Here you can set properties such as cell width and text alignment for individual cells.


  1. [en] Place your cursor in the cell you want to affect.

  2. [en] From the Table toolbar select the Cell properties icon (5).

  3. [en] In the dropdown you can choose from the following options:

    1. [en] Cell width

      Anmerkung

      [en] Widths can be set in percentages (%), pixels (px), centimeters (cm) and millimeters (mm).

    2. [en] Horizontal text alignment

    3. [en] Vertical text alignment

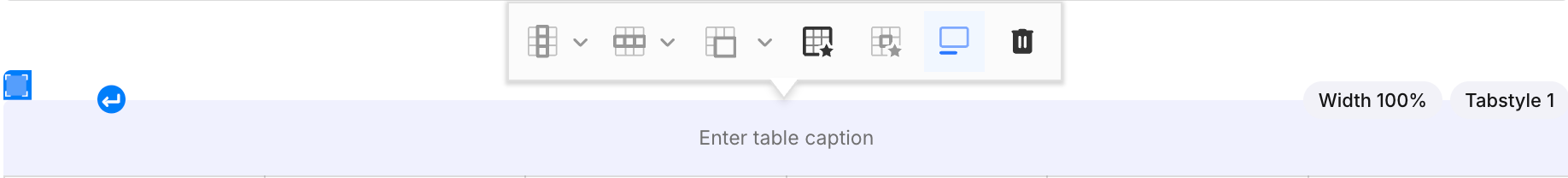

[en] Table captions

[en] Toggle the table caption on or off.


  1. [en] Place your cursor anywhere inside your table.

  2. [en] From the Table toolbar select the Toggle caption icon (6).

  3. [en] Select the icon again to turn the caption off.

[en] Delete table

  1. [en] Place your cursor anywhere inside your table.

  2. [en] From the Table toolbar select the Delete icon (7).

[en] Images

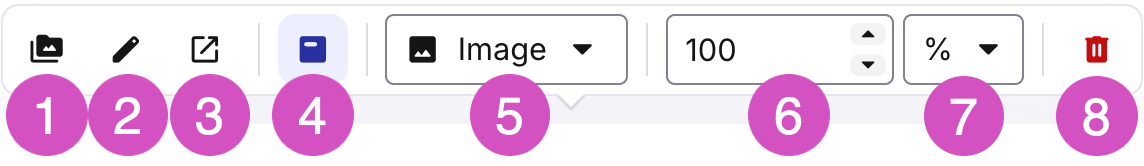

[en] The easiest way to adjust image properties is by using the Image toolbar. You can also set image properties by assigning attributes to image elements.


[en] Replace an image

[en] To replace an image with another image:

  1. [en] Select the image.

  2. [en] From the Image toolbar select the File browser icon (1) to open the Image file browser

  3. [en] Browse to the desired image or upload a new image and select it.

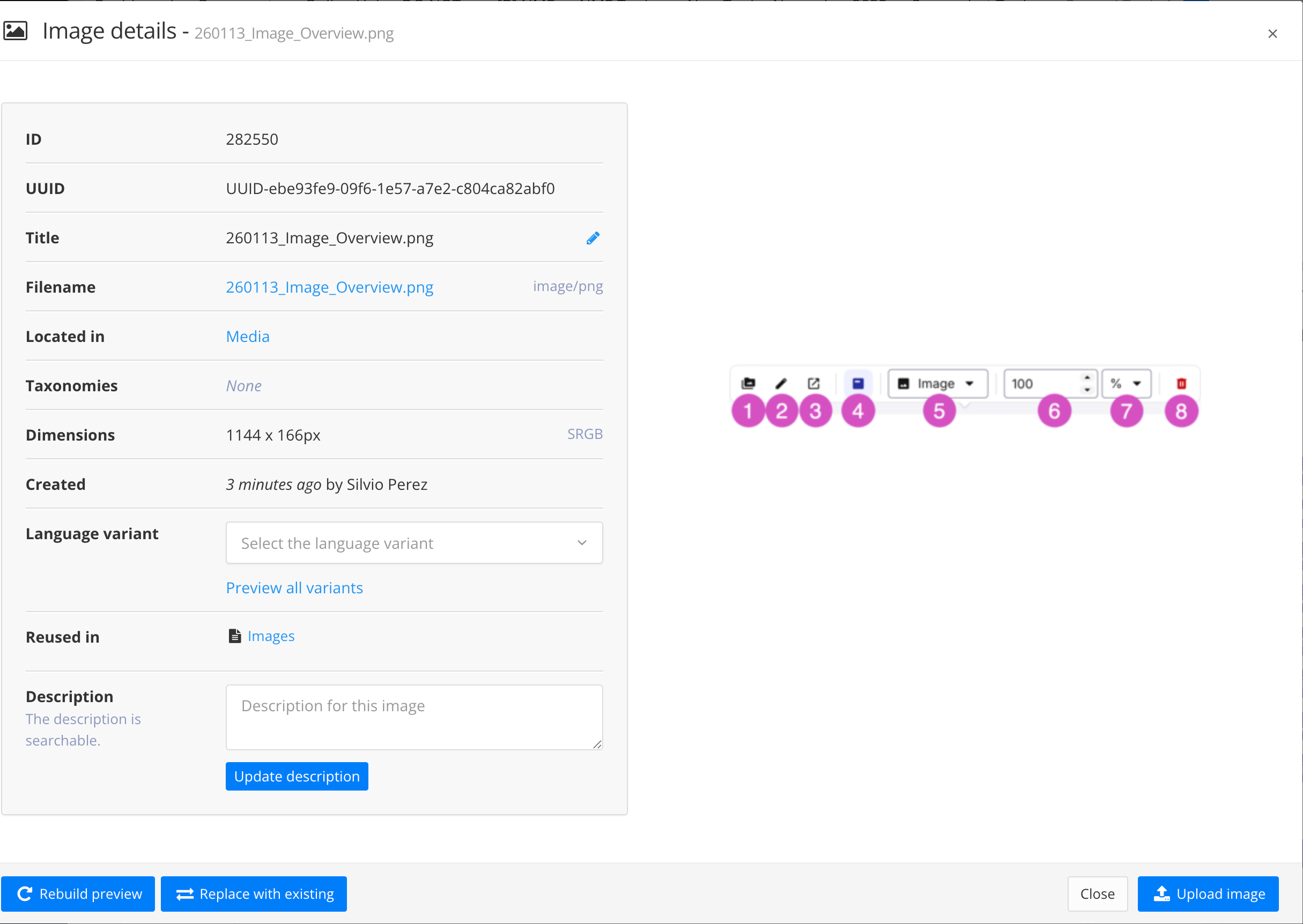

[en] Edit image details

  1. [en] Select the image.

  2. [en] From the Image toolbar select the Edit image details icon (2) to show the image details window.

    [en] In the image details window you can:

    • [en] Edit the title

    • [en] Select the language variants

    • [en] Update the image description

    • [en] Replace the image with an existing image, or upload a new image.


[en] Open image location

[en] The Open image location function lets you open the image's parent folder in a separate browser tab.

  1. [en] Select the image.

  2. [en] From the Image toolbar select the Open location in new tab icon (3).

    [en] A new browser tab opens showing the contents of the image's parent folder in the Content manager.

[en] Image caption

  1. [en] Select the image.

  2. [en] From the Image toolbar select the Toggle caption icon (4) to toggle the image caption on or off.

[en] 'Switch between Image and inline image

[en] You can toggle between Image and Inline image.

  1. [en] Select the image.

  2. [en] From the Image toolbar select the Image/Inline image dropdown (5) and select Image or Inline image.


[en] Image width

  1. [en] Select the image.

  2. [en] From the Image toolbar select the Image width field (6) and enter the image width.

  3. [en] From the Image toolbar select the Unit field (7) and set it to either percentage (%) or pixels (px).


[en] Delete image

  1. [en] Select the image.

  2. [en] From the Image toolbar select the Delete icon (8).

[en] Links and cross-references

[en] Inserting links can be done via the Insert menu in the Menubar.

  1. [en] Place your cursor where you want to insert the link, or select existing text you want to use as the link text.

  2. [en] From the Menubar select Link, then select Cross reference or External link.

[en] Lists

[en] Working with lists works in much the same way as in other writing programs. Most of the actions required can be performed through the keyboard.

[en] Create a list

  1. [en] Create a new paragraph

  2. [en] Convert the new paragraph to a list by:

    • [en] using one of the list icons in the Toolbar

    • [en] using the Element context menu and search for the list type you want, e.g. itemizedlist, orderedlist, or ptocedure.

[en] Nested lists

[en] Nested lists are made by adding a regular list item, and then indenting that item to create a nested list.

  1. [en] Place your cursor at the end of the list item you want to create a nested list for.

  2. [en] Press Enter.

  3. [en] Convert the newly created list item into a nested list by:

    • [en] pressing the Tab key.

    • [en] from the Toolbar select More options, then Indent list item format_indent_increase.svg

    Anmerkung

    [en] If the nested list is not of the correct type, place your cursor in any of the list items of the nested list and use the list item icon in the Toolbar to convert the nested list.

    Anmerkung

    [en] You can outdent a nested list item by placing the cursor anywhere in the list item you want to outdent, and then:

    • [en] pressing Shift + Tab.

    • [en] from the Toolbar select More options, then Outdent list item format_indent_decrease.svg

[en] Reuse list items

[en] In technical publications, it is quite common to have list items and steps that are repeated in various different topics. For example, if you are documenting software, it is likely that you will use a 'Save' step in lots of different procedures.

[en] In Paligo, there are two different ways to reuse steps. You can use:

  • [en] The reuse text feature for single list items or steps.

  • [en] An informal topic to reuse a sequence of list items or steps.

[en] Reuse single list items or steps

  1. [en] Insert a new empty list item.

  2. [en] Using the Reuse text widget, search for and insert the text you want to use as the list item.

    Anmerkung

    [en] For more information on usin the Reuse text feature, see Wiederverwendbares Textfragment einfügen.

[en] Reuse a sequence of list items or steps

[en] When reusing a sequence of list items or steps, it is important to place the reused informal topic in the correct position in the structure to avoid creating invalid XML structures. The informal topic containing the reused items/steps should be placed before or after a lit item or step, not after the paragraph inside a list item or step.

  1. [en] Place the cursor anywhere inside the list item before or after which you want to insert the informal topic.

  2. [en] In the Element context menu, select the listitem element (not the para element inside the listelement) and choose Insert element > Insert before or Insert after.

  3. [en] In the Element insert menu, select para to insert an ampty paragraph.

  4. [en] With the cursor inside the newly created empty paragraph, from the Menubar select Insert and then Component.

  5. [en] In the Import content window, select the informal topic you want to insert.
